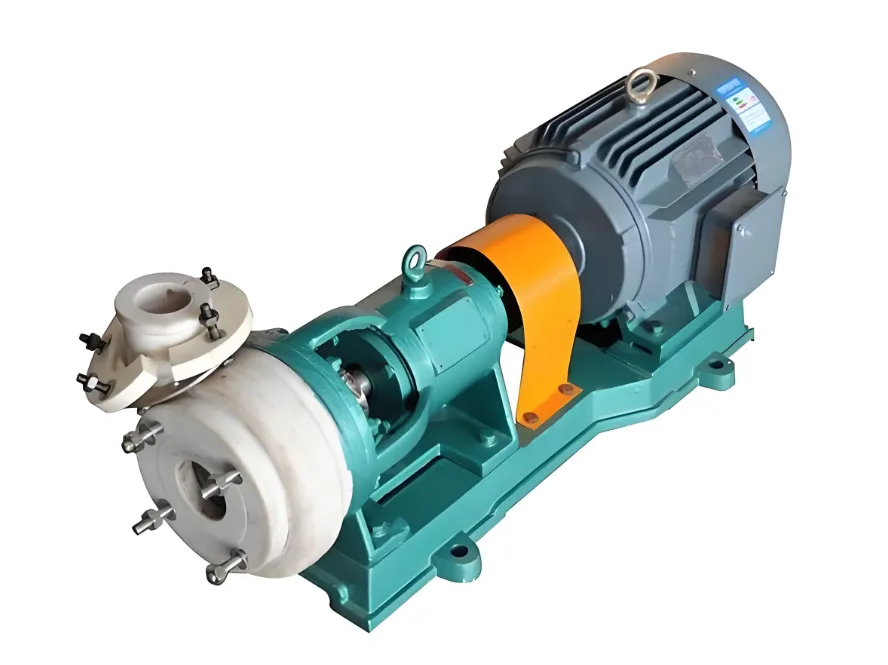

FSB and FSB-L Series fluorine plastic enhanced alloy pump
Our FSB and FSB-L Series fluorine plastic enhanced alloy pumps engineered using proprietary fluorine plastic alloy molding technology, specifically designed to transport highly corrosive media, including concentrated acids and strong oxidizers. By integrating advanced materials with precision engineering, Rongsheng ensures that every FSB and FSB-L Series unit delivers leak-free, energy-efficient, and long-lasting performance for the most demanding global industrial applications.
Send Inquiry
Product Description
The FSB and FSB-L Series fluorine plastic enhanced alloy pump of anti-corrosion pumping technology. At Rongsheng , we utilize a specialized "Fluorine Alloy"—a scientific blend of PTFE, FEP, and other high-molecular fluoropolymers. This material is molded under high pressure to create a seamless, high-strength lining for all wetted parts.
Unlike standard plastic pumps, our FSB and FSB-L Series offers:
- Ultimate Corrosion Resistance: Capable of handling any concentration of acids, alkalis, and organic solvents.
- Structural Integrity: Enhanced alloy construction prevents aging and mechanical deformation under high-stress conditions.
- Environmental Safety: Designed with a "Zero-Leakage" philosophy to prevent "emitting, dropping, and leaking" in civilized factory environments.
Operating Performance Table (Standard Specifications)
The following data represents the core technical parameters of the FSB and FSB-L Series . Each pump manufactured by Rongsheng undergoes rigorous testing and is archived for quality tracking.
| Model | Capacity (m³/h) | Head (m) | Caliber-Suck (mm) | Caliber-Spit out (mm) | Motor power (KW) | Speed (r/min) | Vacuum high (m) | Efficiency (%) |
| 25FSB-10L | 1.5 | 10 | 25 | 20 | 1.5 | 2900 | 6 | 29 |
| 25FSB-18L | 3.6 | 18 | 25 | 20 | 2.2-3 | 2900 | 6 | 27 |
| 40FSB-15L | 5 | 15 | 40 | 32 | 3 | 2900 | 6 | 40 |
| 40FSB-20L | 10 | 20 | 40 | 32 | 3 | 2900 | 6 | 42 |
| 40FSB-30L | 10 | 30 | 40 | 32 | 3-4 | 2900 | 6 | 38 |
| 40FSB-40L | 10 | 40 | 40 | 32 | 4-5.5 | 2900 | 5.5 | 35 |
| 40FSB-50L | 10 | 50 | 40 | 32 | 5.5-7.5 | 2900 | 5 | 33 |
| 50FSB-20L | 15 | 20 | 50 | 40 | 3-4 | 2900 | 6 | 51 |
| 50FSB-25L | 15 | 25 | 50 | 40 | 4 | 2900 | 6 | 49 |
| 50FSB-30L | 15 | 30 | 50 | 40 | 4 | 2900 | 6 | 44.5 |
| 50FSB-40L | 15 | 40 | 50 | 32 | 4.5-5.5 | 2900 | 5.5 | 35 |
| 50FSB-50L | 15 | 50 | 50 | 32 | 5.5-7.5 | 2900 | 5.5 | 33 |
| 50FSB-63L | 15 | 63 | 50 | 32 | 11 | 2900 | 5.5 | 30 |
| 65FSB-32L | 29 | 32 | 65 | 50 | 5.5 | 2900 | 6 | 57 |
| 65FSB-40L | 29 | 40 | 65 | 40 | 11 | 2900 | 5.5 | 53 |
| 65FSB-50L | 29 | 50 | 65 | 40 | 15 | 2900 | 5.5 | 46 |
| 65FSB-64L | 29 | 64 | 65 | 50 | 15-18.5 | 2900 | 5.5 | 44 |
| 80FSB-20L | 50 | 20 | 80 | 65 | 5.5 | 2900 | 6 | 69 |
| 80FSB-30L | 50 | 30 | 80 | 65 | 7.5 | 2900 | 5.5 | 64 |
| 80FSB-34L | 50 | 34 | 80 | 65 | 11 | 2900 | 5.5 | 64 |
| 80FSB-40L | 50 | 40 | 80 | 50 | 11-15 | 2900 | 5.5 | 60 |
| 80FSB-50L | 50 | 50 | 80 | 50 | 15-18.5 | 2900 | 6 | 53 |
| 80FSB-55L | 50 | 55 | 80 | 50 | 15-18.5 | 2900 | 5.5 | 47 |
| 80FSB-80L | 50 | 80 | 80 | 50 | 30-37 | 2900 | 5.5 | 36 |
| 100FSB-32L | 100 | 32 | 100 | 80 | 18.5-22 | 2900 | 5.5 | 70 |
| 100FSB-40L | 100 | 40 | 100 | 80 | 18.5-22 | 2900 | 5.5 | 70 |
| 100FSB-50L | 100 | 50 | 100 | 65 | 22-30 | 2900 | 5.5 | 62 |
| 125FSB-32L | 125 | 32 | 125 | 80 | 22 | 2900 | 5.5 | 72 |
| 125FSB-40L | 125 | 40 | 125 | 80 | 30 | 2900 | 5.5 | 70.9 |
| 125FSB-50L | 125 | 50 | 125 | 100 | 37 | 2900 | 5.5 | 64 |
| 150FSB-22L | 190 | 22 | 150 | 100 | 18.5 | 1450 | 6 | 77 |
| 150FSB-35L | 190 | 35 | 150 | 100 | 30 | 1450 | 5 | 75 |
| 150FSB-42L | 190 | 42 | 150 | 100 | 55 | 1450 | 4.5 | 70 |
| 200FSB-20L | 200 | 20 | 200 | 150 | 37 | 1450 | 3 | 81 |
| 200FSB-32L | 200 | 32 | 200 | 150 | 55 | 1450 | 3 | 79 |
Key Advantages & Engineering Excellence
Why do global engineers prefer the FSB and FSB-L Series from Rongsheng ?
- Gelan Mechanical Seals: We collaborate with the British Gelan Company to produce high-performance mechanical seals. This partnership ensures that every FSB and FSB-L Series pump offers superior reliability and convenient maintenance.
- Thermal Engineering Integration: Our R&D team, backed by over a decade of experience, integrates advanced thermal engineering to ensure the pump operates efficiently under varying temperature cycles.
- Green Production Concept: We emphasize power saving and emission reduction. Our pumps are designed to optimize fluid dynamics, reducing the total cost of ownership (TCO) for our clients.
Industry Applications
Our FSB and FSB-L Series fluorine plastic enhanced alloy pump is a versatile workhorse used extensively in:
- Petrochemical & Refining: Handling of volatile acids and oxidizers.
- Pharmaceutical & Pesticide: Transferring high-purity chemical intermediates.
- Metallurgy & Electroplating: Resisting the harsh corrosive environment of plating baths.
- Battery Manufacturing: Specialized for lead-acid battery production lines where lead oxide purity and acid stability are paramount.
FAQ
Q: What is the maximum temperature the FSB and FSB-L Series can handle?
A: Our fluorine alloy material is designed for long-term stability in temperatures typically ranging from -20°C up to 100°C+, depending on the specific chemical media.
Q: Is it difficult to maintain the mechanical seal?
A: Not at all. The FSB and FSB-L Series features a design optimized for repair convenience, allowing for quick seal replacement without specialized tools.
Q: Does Rongsheng provide on-site technical guidance?
A: Yes, we provide full technical support, including on-site installation guidance and operational training for all our global clients.
