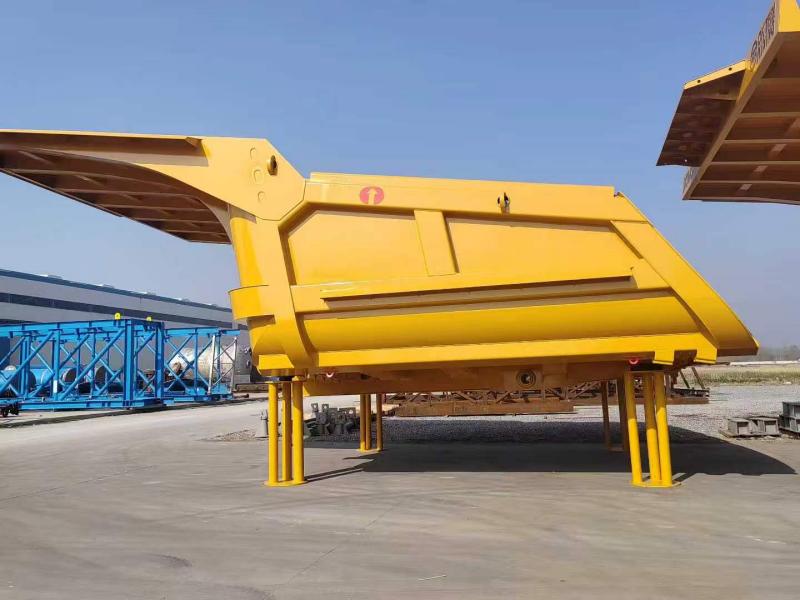

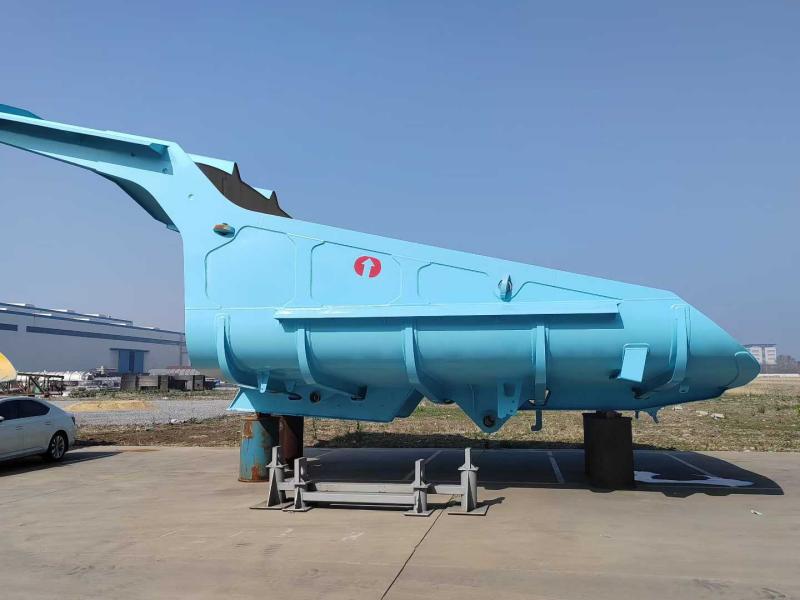

Cargo body of heavy-duty mining dump truck

The Hongsheng heavy-duty mining dump truck cargo body is designed with the actual, rugged operating conditions of mining sites as its fundamental premise; it seamlessly integrates high-strength, wear-resistant steel plates and a structure optimized via Finite Element Analysis with the dump truck's hydraulic lifting system. Moving away from traditional flat-bottomed rectangular designs, this cargo body adopts a tailgate-free, shovel-type profile featuring a continuous slope. This design is complemented by a layered arrangement of dual-grade NM400/NM450 wear-resistant steels: NM450 is utilized for the floor and high-wear zones to resist sliding abrasion, while NM400 is applied to impact zones and top guard plates to absorb the shock of falling rocks. Furthermore, the external skeletal structure—comprising five longitudinal and nine transverse ribs—combined with a rounded-arc transition design, effectively disperses stress under heavy loads, thereby preventing weld cracking and plate deformation.

Product Definition & Core Identity

What is the Rongsheng Cargo body of heavy-duty mining dump truck?

It is a fully welded, monocoque construction load bed specifically tailored for 50-ton to 100-ton class mechanical drive mining trucks. Designed without a traditional tailgate (gated), the Cargo body of heavy-duty mining dump truck utilizes a "scoop" or "bulldozer" shape. This geometry shifts the center of gravity forward during lifting, creating a natural slide plane.

Key Identity Markers:

Construction: 100% robotic + manual full penetration welding.

Geometry: Curved floor (banana style) with a rising rear tail angle.

Hardware: Integrated rock ejection guards and reinforced pivot lugs.

Technical Advantages & Engineering Superiority

1. The "Ghost Floor" Sloped Design (Zero Carry-Back)

Our engineering analysis of global mining sites revealed that standard rectangular bodies retain up to 3-5 tons of sticky material per cycle. Rongsheng has solved this by eliminating the flat floor. The Cargo body of heavy-duty mining dump truck features a 13-degree continuous rise from the cab guard to the rear tip. This "live floor" effect utilizes gravity acceleration. When the hoist engages, the load fractures and slides in one motion. No more dig-outs, no more swinging a hammer at a frozen load.

2. Material Science: NM400 vs. NM450 Strategic Layering

Selecting the right steel grade is a balance of impact toughness versus pure wear life -1. We do not use a single grade for the entire unit; we utilize a "Bi-Grade" strategy.

Floor & Lower Sidewalls (High Wear): Fitted with NM450 for superior sliding abrasion resistance (Hardness 420–480 HB).

Upper Sidewalls & Front Canopy (High Impact): Fitted with NM400 for superior toughness and weld stability (Hardness 360–440 HB).

This combination ensures the Cargo body of heavy-duty mining dump truck absorbs the shock of falling 500kg boulders without cracking (NM400), while the floor deflects the constant drag of haulage (NM450).

3. "Five-Rib Nine-Longitudinal" Skeleton Integration

Finite Element Analysis (FEA) simulations showed that stress fractures typically originate at the weld seams between the floor and stiffeners. Therefore, rather than simply welding cross-members onto a flat plate, we integrate the supporting structure into the shell. The external "Five Longitudinal and Nine Cross" lattice design acts as a truss. It distributes the loaded mass of 60+ tons across the entire chassis rail, preventing the "banana peel" deformation common in competitor products.

Key Features & Functional Design

Optimized Rock Deflection Geometry

The front canopy extends outward and upward at a 45-degree angle. This serves two critical functions for the Cargo body of heavy-duty mining dump truck :

Protection: Deflects boulders away from the cab roof and windshield.

Volume Expansion: Increases struck capacity without raising the center of gravity dangerously.

Reinforced Tail Impact Zone

The rear edge is fitted with a double-thick NM450 wear strip. During back-dragging (a common practice to clean dumping pads), standard bodies warp. Our reinforced tail maintains its linear shape, ensuring the tailgate (if equipped) seals properly.

Technical Data Sheet (Specifications)

Standard specifications for the 60-ton class Cargo body of heavy-duty mining dump truck . Custom engineering available for other payloads.

Why Choose Rongsheng for Heavy-Duty Mining Solutions?

Choosing a supplier for capital equipment is a strategic decision. Jiangsu Rongsheng Import And Export Co., Ltd. differentiates itself through "Technical Metallurgy Support." We are not a trading company; we are engineers.

The Metallurgical Edge: Because our parent company specializes in lead oxide and heavy industrial processing (lead oxide production equipment, thermal engineering), we possess an intrinsic understanding of high-temperature stress and crystalline structure changes in steel -1. We apply this "heat stress logic" to the welding of our truck bodies, ensuring HAZ (Heat Affected Zones) are minimized.

Customized Fabrication: We do not maintain "one-size-fits-all" inventory. Each Cargo body of heavy-duty mining dump truck is reverse-engineered to match the specific chassis mounting points (pivot pins and ladder frames) of your existing fleet (CAT, Komatsu, BelAZ, or XCMG).

Warranty on Structural Integrity: We offer a standard structural warranty against cracking on main floor plates—a testament to our stress-relief heat treatment post-welding.

Company Profile & Global Footprint

Jiangsu Rongsheng Import And Export Co., Ltd. has its roots deep in heavy manufacturing. Starting with high-complexity lead oxide production lines (serving the battery, glass, and ceramics sectors), the company has expanded its "heavy load handling" expertise into the mining logistics sector.

Our Core Competencies:

R&D Focus: Led by senior engineers with 10+ years in wear-steel application.

Global Service: We provide on-site technical guidance for first-time installations.

Quality Foremost: Every Cargo body of heavy-duty mining dump truck undergoes magnetic particle inspection (MPI) to detect sub-surface weld flaws before sandblasting and painting.

Freight & Installation Recommendations

Given the volumetric size of the Cargo body of heavy-duty mining dump truck , shipping is typically performed via flat rack containers or break-bulk vessels.

Pre-assembly: The body is welded as a single unit.

Surface treatment: Two-component epoxy primer (Corrosion protection for sea freight) + Polyurethane top coat (UV resistance).

On-site installation: Our team provides bolt-on instructions for hoist cylinder alignment to prevent twisting of the new body.

Frequently Asked Questions (FAQ)

Q: Can I mount your Cargo body on a different brand of truck chassis (e.g., a Komatsu HD785)?
A: Yes. Jiangsu Rongsheng Import And Export Co., Ltd. designs the Cargo body of heavy-duty mining dump truck to be brand-agnostic. We require your original chassis dimensions (pivot pin diameter, ladder frame width, hoist cylinder stroke) to fabricate the correct mounting sub-frame.

Q: How do I choose between a gated body and a gateless scoop body?
A: If you haul fine sand or aggregate, a gate prevents "saw-toothing" of the pile. If you haul blasted rock or demolition debris, our standard gateless scoop design offers higher dump speeds and zero gate maintenance. We will advise based on your material density.

Q: What is the lead time for a custom-spec heavy-duty mining dump truck cargo body?
A: Standard bodies require 30-45 days. Custom fabrication (including drawing review and pattern making) requires 45-60 days, plus sea freight transit time.

Q: Do you provide the liner bolts?
A: Yes. We supply the complete hardware kit, including cup square head liners and rubber washers for vibration dampening, ensuring the NM450 liners stay tight against the main floor plate.

Contact Engineering Support

Do you have specific payload requirements or wear patterns from your current fleet?

Contact We / Our engineering department at Jiangsu Rongsheng Import And Export Co., Ltd. We will provide a Finite Element Analysis (FEA) wear prediction for the Cargo body of heavy-duty mining dump truck specifically for your mine site conditions.
